MARVEL-LUMEN
MARVEL-LUMEN micro-AUV just make AUV technology accessible. Using MARVEL-LUMEN is certainly nowadays one of the most simple and cost-effective way for imaging acquisition that features geo-referenced digital capture of both still images and video.
Equipped with a high quality underwater camera from Arctic Rays, MARVEL-LUMEN provide with a great quality of image with high-stability, accurate navigation and capable of managing coastal areas with waves and current.
MARVEL-LUMEN is equipped with underwater acoustic positioning and communication module.
With an autonomy up to 8 hours, and speed up to 6knots, and depth rated at 300m.
Thanks to the INX navigation, DVL and acoustic positioning, MARVEL-LUMEN is able to have a navigation accuracy equal to <5m absolute positioning within USBL surface module range.
SEAPLAN software provides an ideal and versatile interface for the MARVEL-LUMEN micro-AUV and have pre-defined lawn-mover patterns to make a swift scan mission.
Thanks to its mission programming savings and updates, SEAPLAN facilitates discovery of new area as well as repetitive mission in similar locations.

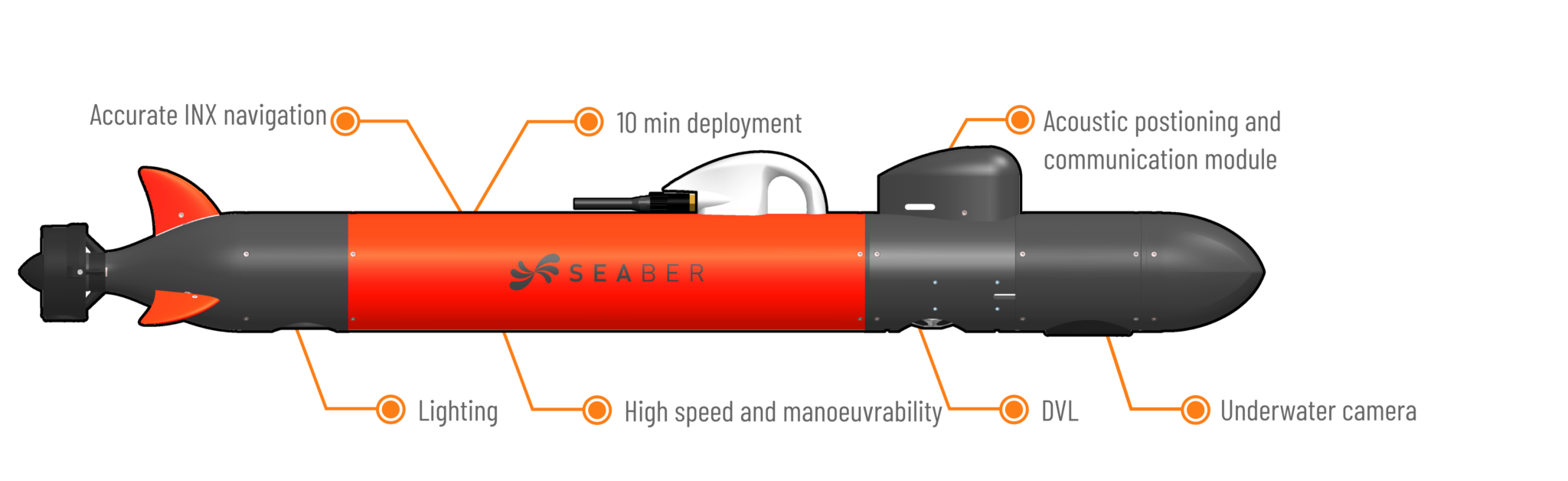

MARVEL-LUMEN is provided with all the necessary functions to be ready-to-deploy :
- INX Navigation system
- DVL
- SEAPLAN Software
- Embedded rechargeable batteries
- SEACOMM
- Field case and accessories
- Acoustic positioning and communication module
- Autonomous buoy with USBL unit and dual antenna GNSS-RTK module
*MARVEL AUV is subject to dual use export license from SBDU authority in France.
![SEABER_AUV_Micro-AUV_Pink_UUV_Hydrographic_Side_Scan_Sonar_PAM_CTD_ASW_YUCO_RECALL_MARVEL_MCM_Mine_Counter_Measures_Security_Coast_Guard_Underwater_Drone_Autonomous Underwater Vehicles_Magnetometer_Sensys_UXO_Multibeam echosounder_MBES_Imagenex_Deep water_Shallow water_survey](https://seaber.fr/wp-content/uploads/2021/09/reloc.jpg)
![SEABER_AUV_Micro-AUV_Pink_UUV_Hydrographic_Side_Scan_Sonar_PAM_CTD_ASW_YUCO_RECALL_MARVEL_MCM_Mine_Counter_Measures_Security_Coast_Guard_Underwater_Drone_Autonomous Underwater Vehicles_Magnetometer_Sensys_UXO_Multibeam echosounder_MBES_Imagenex](https://seaber.fr/wp-content/uploads/2023/09/MARVEL-launching-1024x875.png)
![SEABER_AUV_Micro-AUV_Pink_UUV_Hydrographic_Side_Scan_Sonar_PAM_CTD_ASW_YUCO_RECALL_MARVEL_MCM_Mine_Counter_Measures_Security_Coast_Guard_Underwater_Drone_Autonomous Underwater Vehicles_Magnetometer_Sensys_UXO_Multibeam echosounder_MBES_Imagenex_Deep water_Shallow water_survey](https://seaber.fr/wp-content/uploads/2024/07/Data-LUMEN-1024x750.png)
DVL
Frequency: 1Mhz
Max altitude: 50 meters
Max velocity: 2,6 m/s
Velocity resolution: 0.01 mm/s
Optical and Lighting
Imaging type: single camera, stills and video
Camera Lens: 12 mm f/2.8 rectilinear, low distortion (-0.5%)
Imaging altitude: 3-5m recommended
Integrated lighting: 4x fixed dual-mode LED arrays
Output Lumens: 60 000 Lm in strobe mode, 6 000 Lm in torch mode
For complementary payload options please contact us.
Applications examples:
- Hydrography – Bathymetry
- Marine habitat, Coral Reef, Seagrass
- Lake bathymetry
- Photogrammetry
