YUCO-3DSS

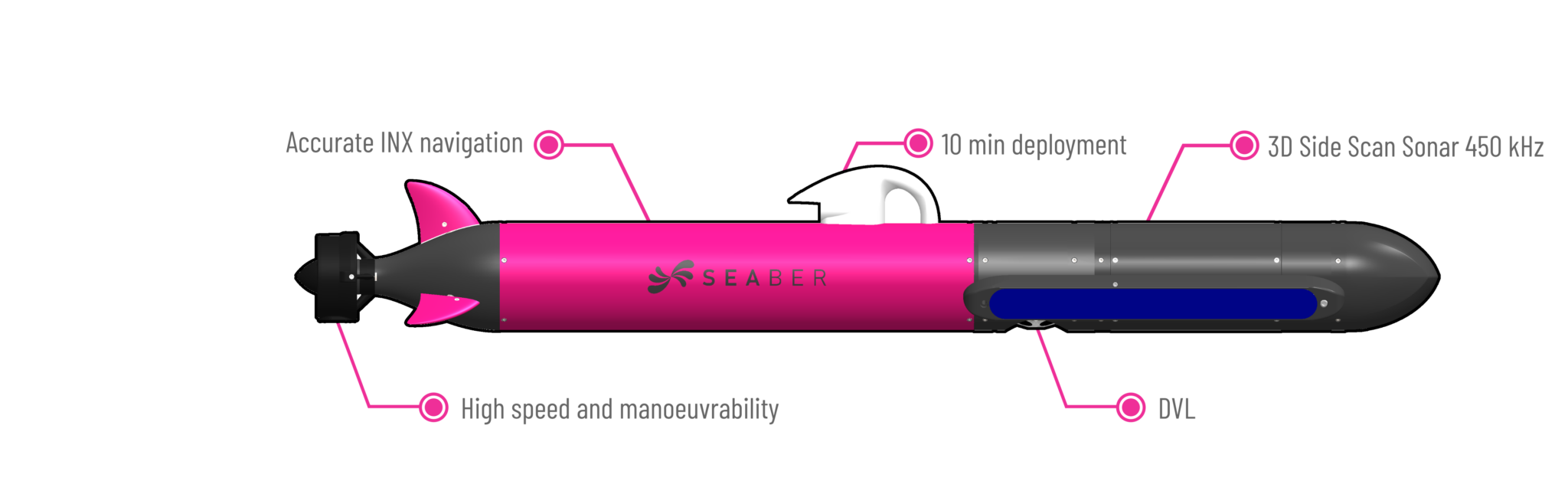

YUCO-3DSS micro-AUV just make AUV technology accessible. Using YUCO-3DSS is certainly nowadays one of the most simple and cost-effective way for high resolution swath bathymetry.
Equipped with a 3D Side Scan Sonar from Ping DSP YUCO-3DSS provide with a great quality of image with high-stability, accurate navigation and capable of managing coastal areas with waves and current.
With an autonomy up to 8 hours, and speed up to 6knots, and depth rated at 300m.
Thanks to the INX navigation and DVL YUCO-3DSS is able to achieve navigation accuracy better than +/-2% without requiring any external elements sur as acoustic telemetry.
This is one of the advantages that makes SEABER underwater vehicle so unique, accurate navigation, ease of use, great autonomy and a real single person deployment no external acoustic tool required.
SEAPLAN software provides an ideal and versatile interface for the YUCO-3DSS micro-AUV and have pre-defined lawn-mover patterns to make a swift scan mission.
Thanks to its mission programming savings and updates, SEAPLAN facilitates discovery of new area as well as repetitive mission in similar locations.
YUCO-3DSS is provided with all the necessary functions to be ready-to-deploy :
- INX Navigation system
- DVL
- SEAPLAN Software
- Embedded rechargeable batteries
- SEACOMM
- Field case and accessories
Get the YUCO-3DSS datasheet
Fill in the form and you will receive an e-mail to download your PDF.
"*" indicates required fields
DVL
Frequency: 1Mhz
Max altitude: 50 meters
Max velocity: 2,6 m/s
Velocity resolution: 0.01 mm/s
3D Side Scan Sonar
Frequency: 450 kHz
Horizontal Beam Width: 0.4°
Vertical Beam Width: 19° – 125°
Range: 200m per side (2D), 100m per side (3D)
For complementary payload options please contact us.
Applications examples:
- Hydrography – Bathymetry
- Marine habitat, Coral Reef, Seagrass
- Lake bathymetry
- Search & Resuce
- After disaster management
- Marine Pollution
- Fisheries
- Object detection – Seabed inspection
