MARVEL-MAGNETO, the most compact UUV detecting magnetic anomalies

MARVEL-MAGNETO

MARVEL-MAGNETO

MARVEL-MAGNETO AUV just make AUV technology accessible. Using MARVEL-MAGNETO is certainly nowadays one of the most simple and cost-effective way to detect magnetic anomalies.

Equipped with a fluxgate magnetometer sensor from Sensys MARVEL-MAGNETO provide with a great quality of image with high-stability, accurate navigation and capable of managing coastal areas with waves and current.

MARVEL-MAGNETO is equipped with underwater acoustic positioning and communication module.

With an autonomy up to 8 hours, and speed up to 6knots, and depth rated at 300m.

Thanks to the INX navigation, DVL and acoustic positioning, MARVEL-MAGNETO is able to have a navigation accuracy equal to <5m absolute positioning within USBL surface module range.

SEAPLAN software provides an ideal and versatile interface for the MARVEL-MAGNETO AUV and have pre-defined lawn-mover patterns to make a swift scan mission.

Thanks to its mission programming savings and updates, SEAPLAN facilitates discovery of new area as well as repetitive mission in similar locations.

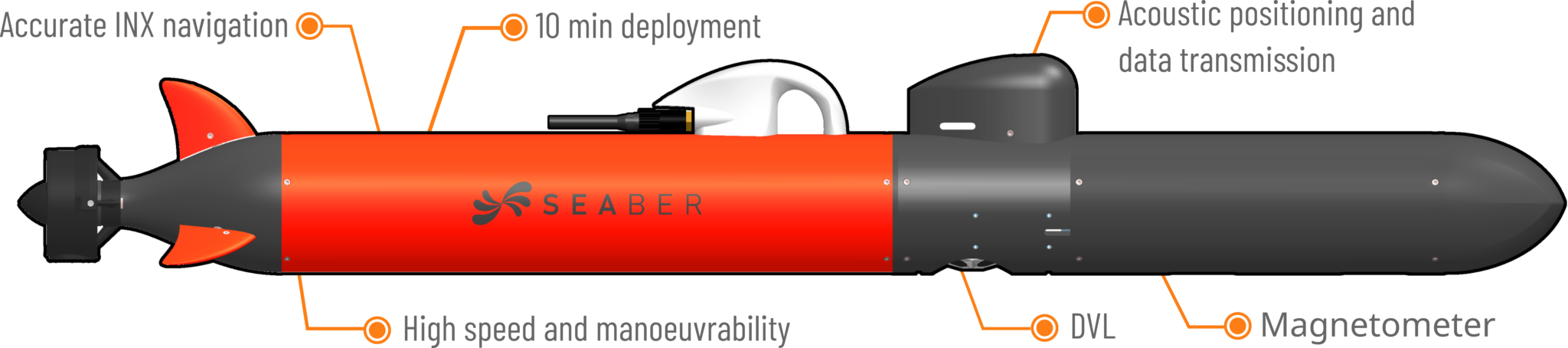

MARVEL-MAGNETO is provided with all the necessary functions to be ready-to-deploy :

  • INX Navigation system
  • DVL
  • SEAPLAN Software
  • Embedded rechargeable batteries
  • SEACOMM
  • Field case and accessories
  • Acoustic positioning and communication module
  • Autonomous buoy with USBL unit and dual antenna GNSS-RTK module

*MARVEL AUV is subject to dual use export license from SBDU authority in France.

Get the MARVEL-MAGNETO datasheet

Fill in the form and you will receive an e-mail to download your PDF.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Identity*
Magnetometer payload example

DVL

  • Frequency: 1 MHz
  • Max altitude: 50 m
  • Max velocity: 2,6 m/s
  • Velocity resolution: 0.01 mm/s

Magnetometer

  • Range: X, Y, Z magnetic vector @ 100 Hz
  • Measurement range: ±100.00 nT
  • Resolution: <150 pT
  • Linearity: <20 ppm
Acoustic positioning and communication module

Acoustic positioning & communication module

  • Acoustic range: 1 km radius (horizontal), 1 km (vertical)
  • Range resolution: ±0.1 m
  • Velocity of sound range: 1300–1700 m·s−1
  • Beacon velocity: Active Doppler compensation, up to 15 kts
